There's always a lot of discussion in rec.woodworking and elsewhere
about dust in the air and what filter bags to buy, etc. Well, one
day a fellow named Willie posted to the Shopsmith Users Group listserv
that he vents his dust outside and blows off (so to speak) the upper filter
bag all together. We got to emailing and this is my version.

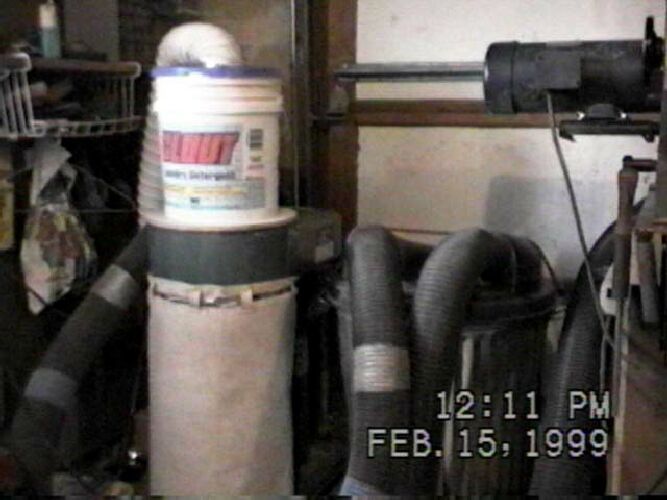

I cut out the bottom of the bucket and put in a 4" adapter on top which
I attach to a drier vent. It blows that really fine dust right out.
It will also blow out some larger particles, but that isn't a problem where
I live. Heck, the chainsaw makes a bigger mess. I just sweep
it up every now and again. Oh yeah, I have one of those garbage can
lid poor man's cyclone separator doo-hickeys. Otherwise it would
be a big mess outside. One of these days I'll post some plans
of sorts. |
|

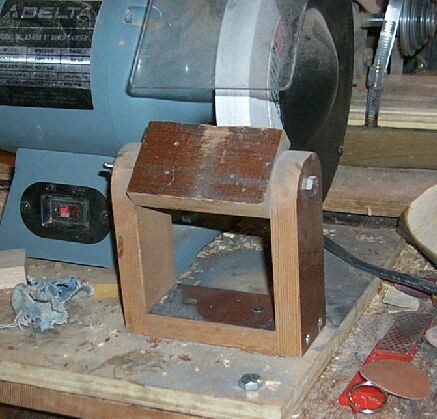

This is my toolrest. I couldn't see paying $30 for a metal one
from the mail order places, and the default one that comes on the grinder
was a joke, so I made this one. Mike Paulson in Denver gave me the
idea - he's got a number of ideas for little shop accessories & such
that I haven't gotten around to doing yet.
The wider platform really helps with the grinding. I don't have
any of those fancy side grind jigs but seem to manage with this.
Someday I'll probably break down and get one, if for no other reason than
to put a more uniform bevel on the gouge. But then I'd just have
to learn to turn all over because the angle of attack will have changed!
Groan.
The platform pivots with a quick turn of the wing nut sticking out on
the left. Fast and easy to adjust!
Note the diamond hone on the right - great for a quick lick on the skew
or whatever. |
|

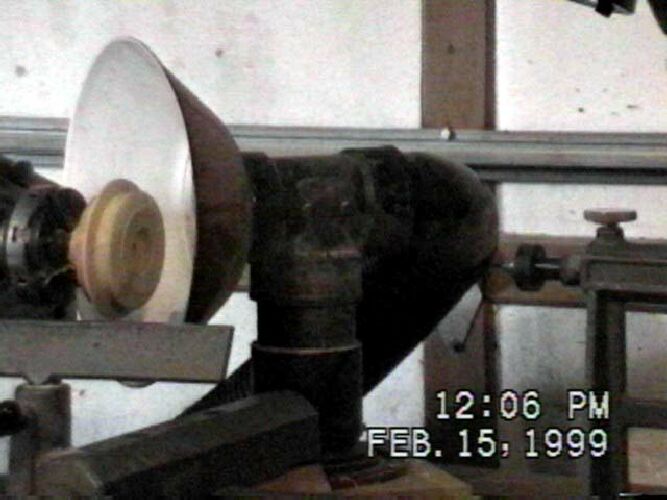

This is what I use to attempt to catch the dust as it comes
off the lathe. It will sometimes catch some curls, but mostly it
helps with the dust. I made it from an old floor lamp and some
basic plumbing fixtures which being 4", are just the right size to fit
my dust collector hose over. It's not a 100% solution, but it helps
a lot with the sanding dust. |
Click image for closeups etc.
|
This is my lathe stand. The top is made from glued
up 2"x4" boards with a thin piece of plywood on top to sorta even out the
surface. It is held to the legs with some 3" angle iron.
I used some 4"x4" stock for the legs. The legs are angled in about
10 degrees (give or take), and are connected with half lap joints.
I sheathed the ends and back with plywood for shear strength. I also
added a shelf about 6" below the top to hold odds and ends.
Note the strip of flashing - its for ripping sandpaper to size.
I've also used a bunch of 6" pieces of pvc pipe as tool holders. |
|

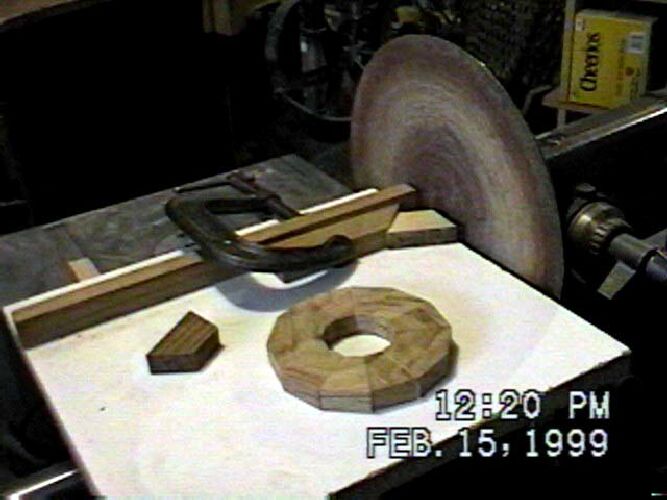

Here's the jig I use to get the joints in segmented turning all nice
and cozy. Its pretty self explanatory. One thing I might mention
is that the angle on the board clamped to the guide is equal to the included
angle of each segment. In English, that means it is twice the
angle your miter saw is set for. If you set your miter saw for 15
degrees (12 piece ring) the angle on the jig guide is 30 degrees.
The math is easy to figure out the angle: its just 180 divided by
the number of segments. |
| Vernier.pdf |
This is a vernier scale I did in Turbocad, then converted to a Acrobat
.pdf format. It is used to create a vernier scale for the tablesaw,
allowing an accuracy of 1/10 of a degree when setting the bevel angle.
For an example (and the inspiration for this check out Kevin Neelley's
page at: http://www.turnedwood.com/tools&jigs.html. |
|
This is my bottle stopper "jig". Details can be found here. |
 |
This is a jig that mi amigo Dave Stacy build to route flutes in his
turned work. Its one of the niftier ones I've seen, and looks quite
solid. Although it isn't in my shop, he said it was fine to post
the photos here so here they are. |
 |
Here's James Johnson's dust collection fan that he mentioned in the
rec.crafts.woodturnng newsgroup. I've got a couple other photos and
a short write up about it if you're interested in the details. |
